AS-62 HF 6m Antenna Switch for two Radios and six Antennas

AS-62 HF 6m Antenna Switch for two Radios and six Antennas - Image 3

AS-62 HF 6m Antenna Switch for two Radios and six Antennas - Image 4

Additional information

Weight	1.3 kg
Dimensions	29 × 19 × 6 cm

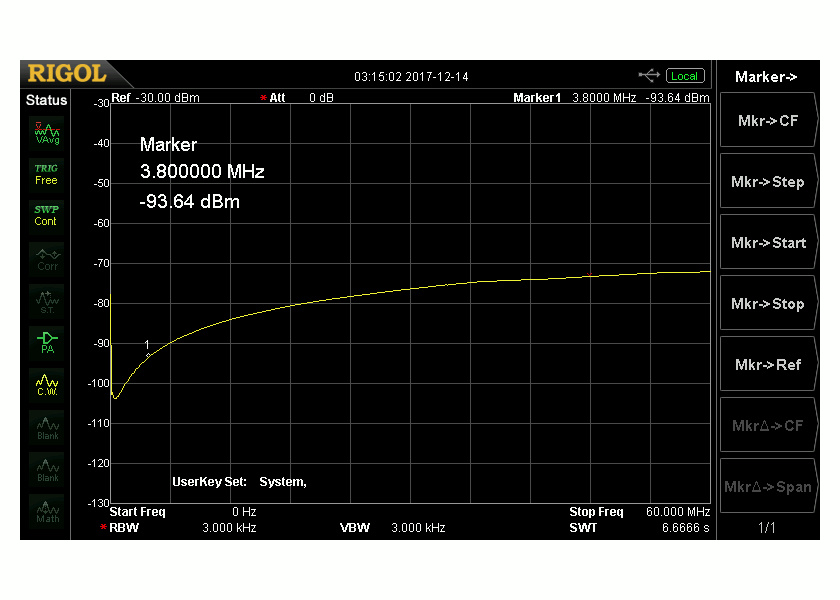

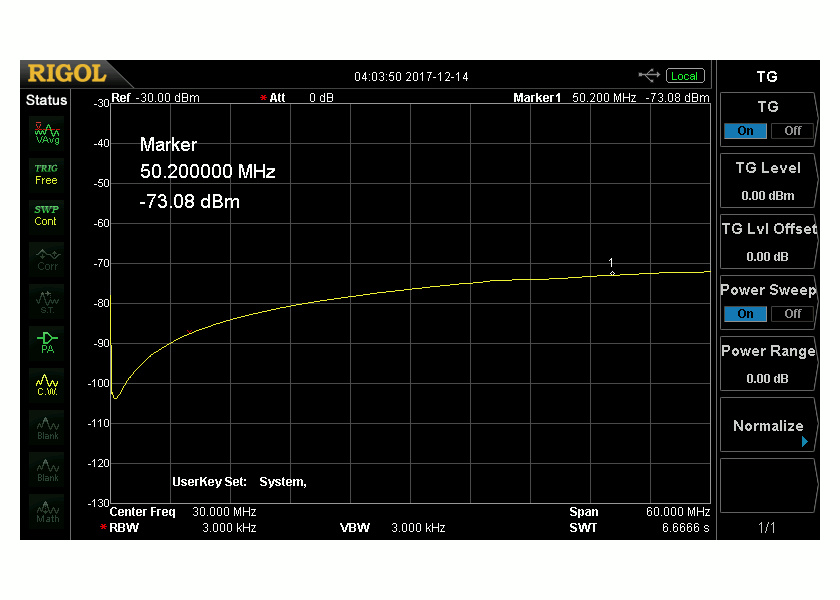

Port to Port Isolation

Specification:

Size:	Width 35,5cm – Height 4,5cm – Deep 18cm
Power Supply:	D.C. 13.8 Volts + or – 20% drain about 200mA
Max. SSB power allowed:	4000 Watts P.E.P. with S.W.R. equal or less than 1.5:1
Frequency of operation:	D.C. to 54 MHz
Time delay to switch:	Equal or less than 12 ms
Insertion loss:	Equal or less than 0,2dB

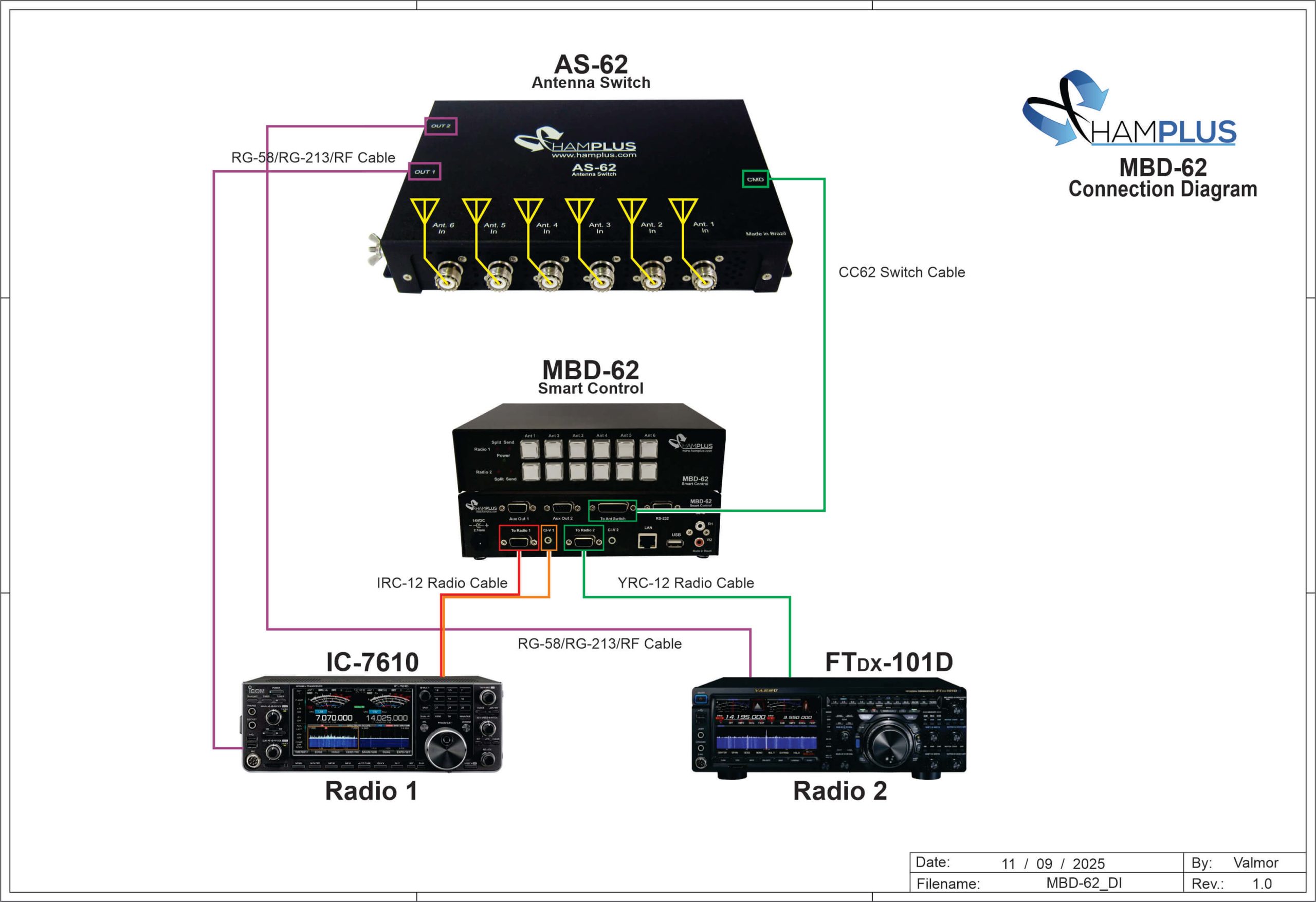

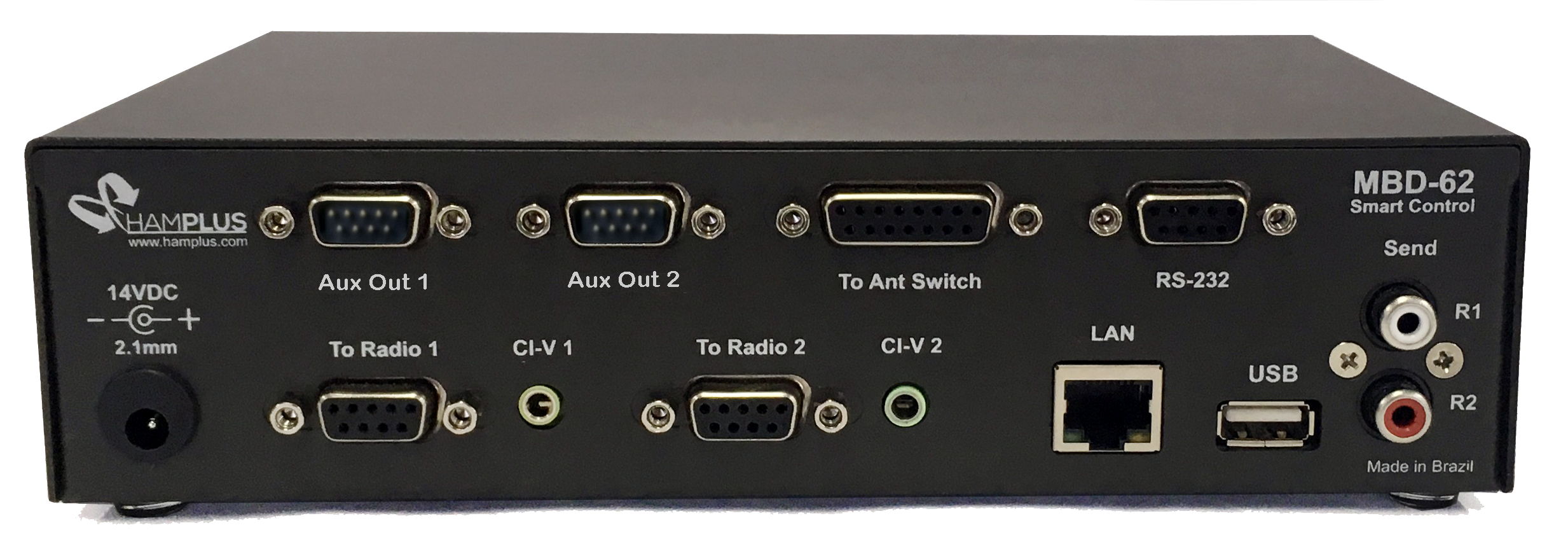

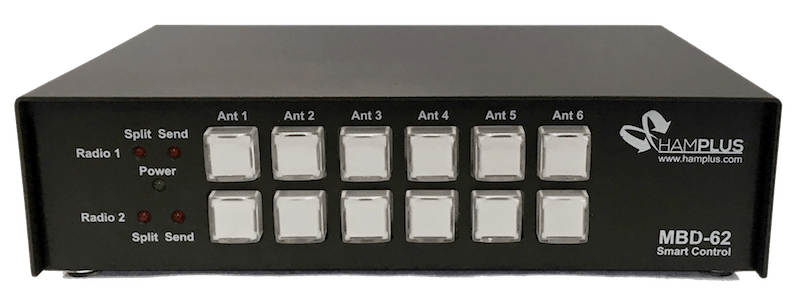

Automatic/manual operation we suggest using MBD-62 controller
Manual only operation we suggest using two RC-12 controllers

No data was found

Category: Antenna Switches, Relay Antenna Switches

Custom

In stock

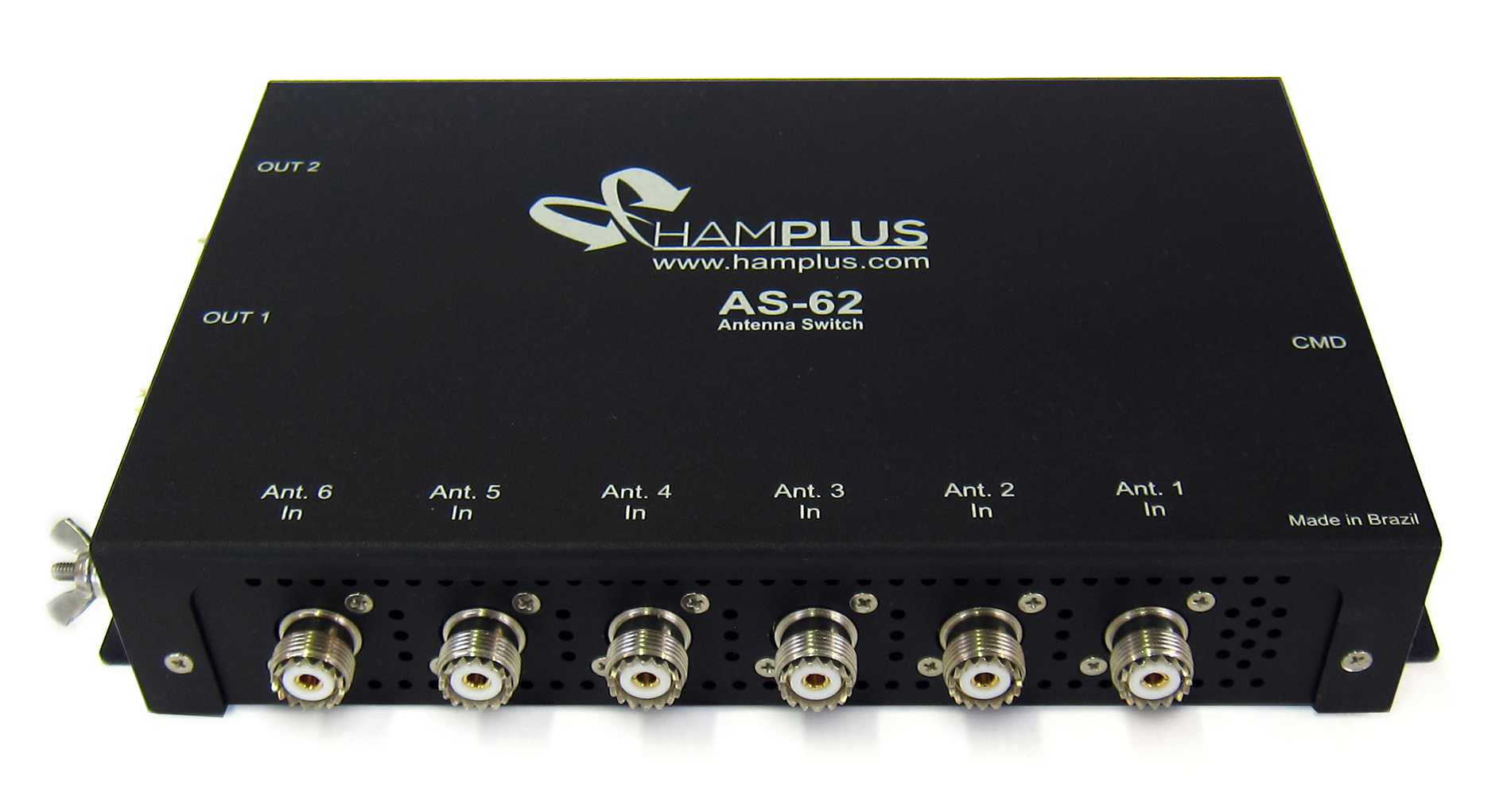

Antenna Switch with 6 inputs by two output remotely controlled.

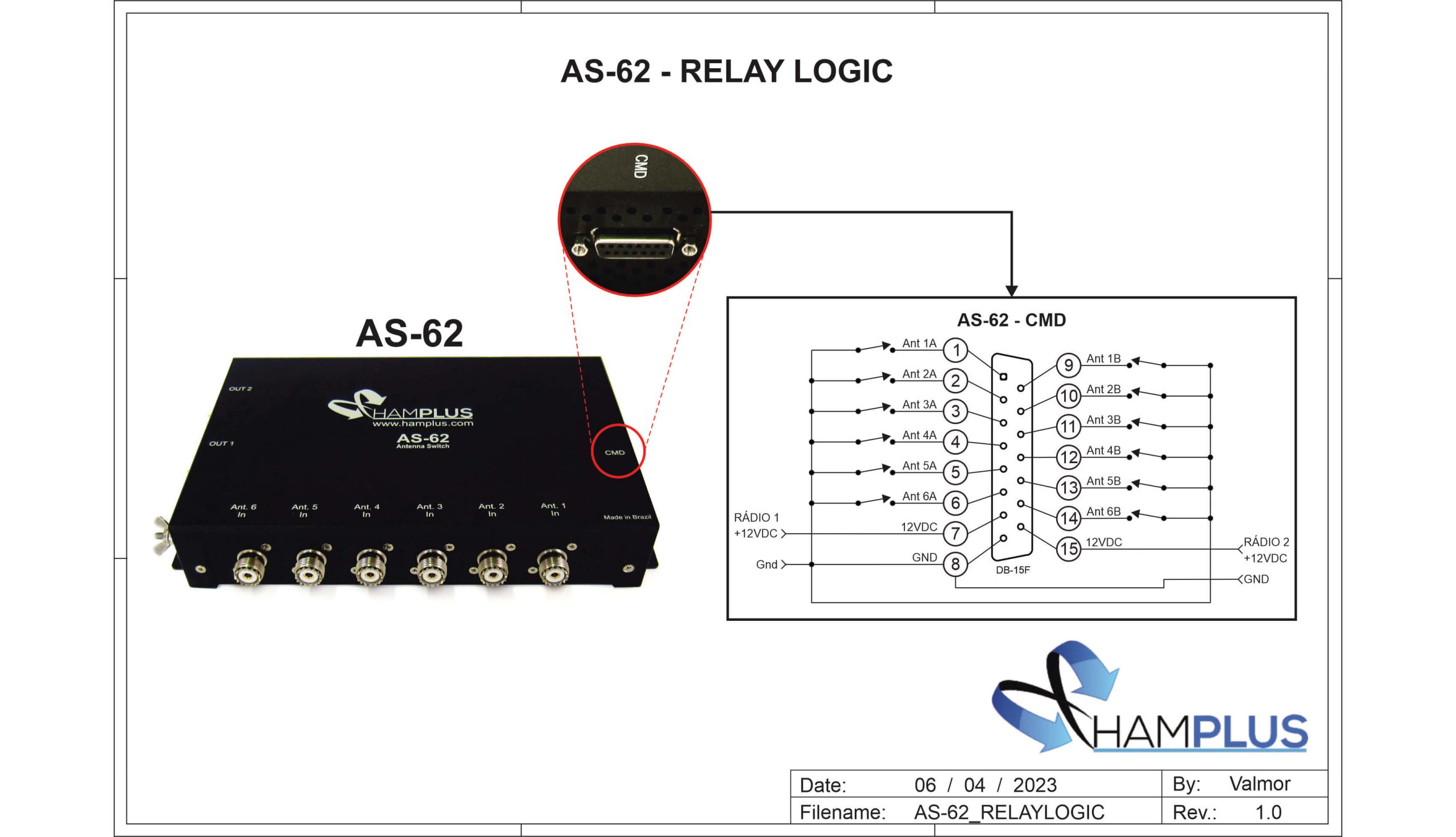

Aluminum cabinet painted in black color, having UHF type (SO-239) for the R.F connections and DB-15 for remote control.
All antenna inputs are switched to ground when not in use.
When the power are switched off, all antenna inputs are routed to ground for protection purposes.

Choose Switch Cable for MBD-62 Controller

CC-62 5M

5 meters

$40.00

CC-62 10M

10 Meters

$64.00

CC-62 10M

CC-62 15M

15 Meters

$88.00

CC-62 15M

CC-62 20M

20 Meters

$112.00

CC-62 20M

CC-62 25M

25 Meters

$136.00

CC-62 25M

CC-62 30M

30 Meters

$160.00

CC-62 30M

Add to wish list

Reviews

Description

Specification:

Size:	Width 35,5cm – Height 4,5cm – Deep 18cm
Power Supply:	D.C. 13.8 Volts + or – 20% drain about 200mA
Max. SSB power allowed:	4000 Watts P.E.P. with S.W.R. equal or less than 1.5:1
Frequency of operation:	D.C. to 54 MHz
Time delay to switch:	Equal or less than 12 ms
Insertion loss:	Equal or less than 0,2dB

Automatic/manual operation we suggest using MBD-62 controller
Manual only operation we suggest using two RC-12 controllers

Additional information

Weight	1.3 kg
Dimensions	29 × 19 × 6 cm

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.
