RS-28 Rotator Switch 2×8

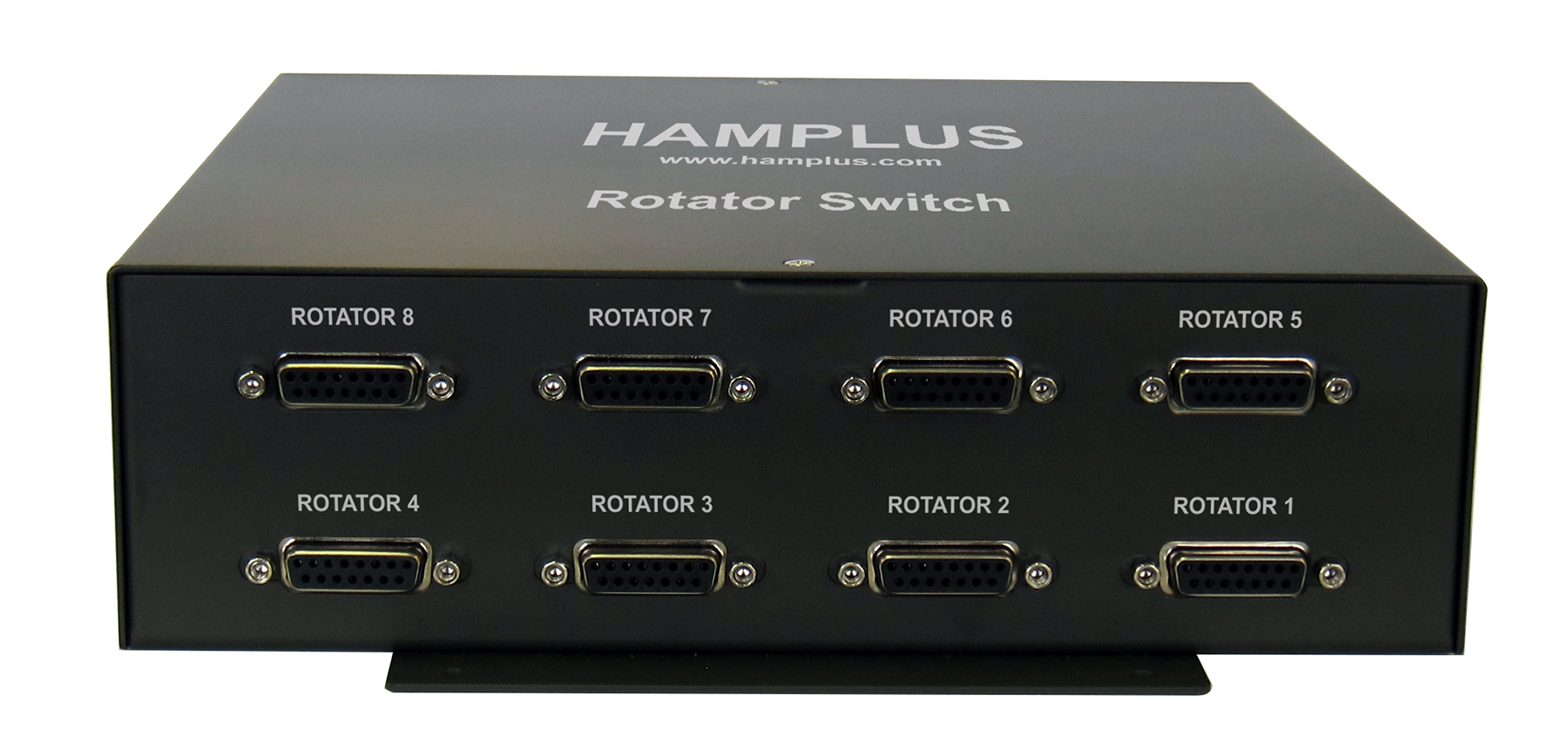

RS-28 Rotator Switch 2x8

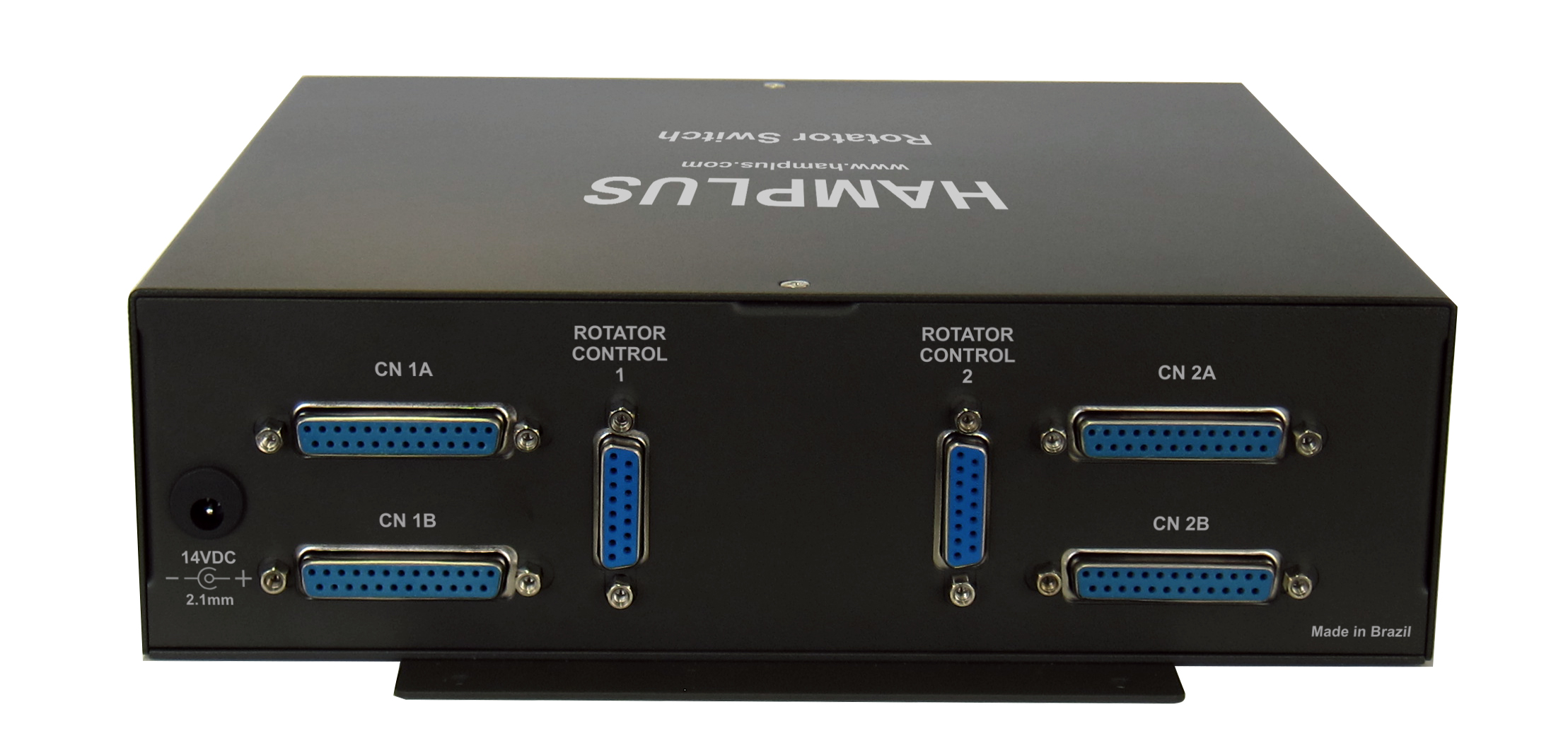

RS-28 Rotator Switch 2x8 - Image 2
RS-28 Rotator Switch 2x8 - Image 3

Additional information

Additional information

Specifications:
Size:
 24,5 cm width, 7cm height and 25,5cm deep
Power suply :
 14 volts
Max. switch current:
8 amp.
Switching:
 8 Wires
  On the follow drawings we are use the YAESU G2800-DXA, but can be used any rotator and controller model. Wiring diagram exemples:
Two radios and eight rotors
  Downloads: RS-28 Connectors Pin Indentification
No data was found
Category: Rotator Switches

$862.00

In stock

If you have more than one radio room (Shack) and/or more than one Rotator on your directional antennas, the Rotator Switch RS-28 is the solution. With it you will use only one controller on the table and it will be able to control till eight antenna rotators.
  • The RS-28 can select between eight rotators using only one controller for each shack.
  • The system can use till two controllers.
  • One interlock system don’t permit connections for rotators in use on other shack.
  • It is possible to automate all station.
  • On systems where the Hamplus  MBD-12F is installed, the rotator assigned to each antenna are called on each change.
  • The RS-28 comutates eight wires.
Add to wish list

Reviews

Description

Specifications:

Size:
 24,5 cm width, 7cm height and 25,5cm deep
Power suply :
 14 volts
Max. switch current:
8 amp.
Switching:
 8 Wires



On the follow drawings we are use the YAESU G2800-DXA, but can be used any rotator and controller model.

Wiring diagram exemples:

Two radios and eight rotors



Downloads: RS-28 Connectors Pin Indentification

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.
